Compression Pipe Bending Services
Compression Pipe Bending Services
Pipe Processing Technical Institute (Pipe Processing TI) offers professional compression pipe bending services for customers who need cost-effective, angle-specific bends in metal tubing. Ideal for simpler geometries and medium- to large-radius bends, compression bending is commonly used in furniture, construction, HVAC, and general industrial fabrication.
If you’re looking for a reliable method to produce clean bends without internal support, compression bending is a practical solution for a wide range of projects.
What Is Compression Pipe Bending?

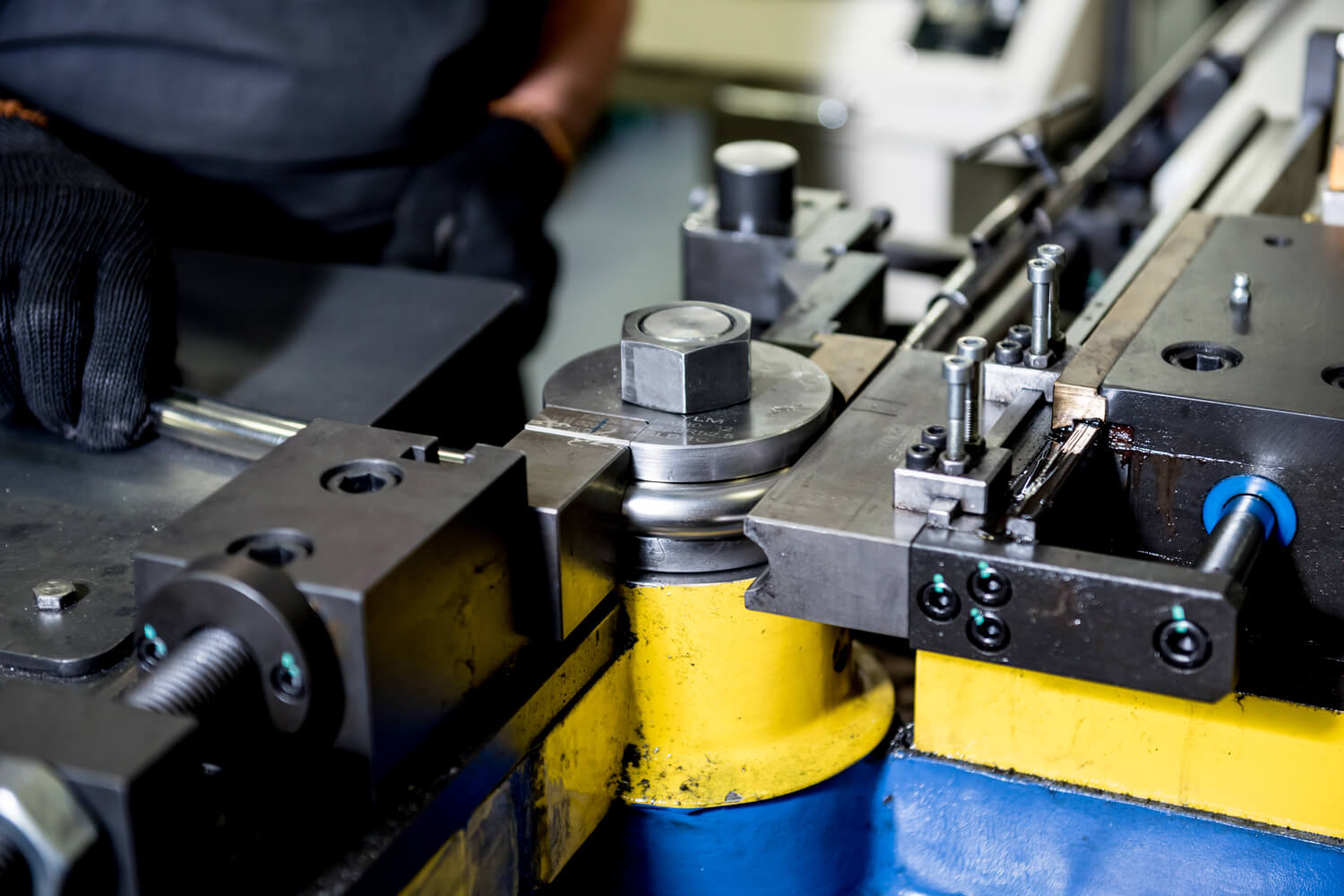

Compression bending is a cold-forming process where a stationary die holds the pipe while a compression roller pushes it around the form, creating a smooth curve. Unlike mandrel or rotary draw bending, no internal support is used, making it best suited for pipes that do not require tight-radius or thin-wall precision.
Compression bending is valued for its simplicity, speed, and suitability for larger radii, making it a go-to option for applications where aesthetic finish and wall integrity are not critical.
Compression Pipe Bending Capabilities and Specifications
Our roll bending service supports a wide range of pipe dimensions, materials, and project types:
- Pipe sizes: ½” to 3″ diameter (material-dependent)
- Bend angles: 30°, 45°, 90°, or custom angles
- Materials supported:
– Mild steel
– Stainless steel
– Aluminum
– Copper and brass - Wall thickness: Medium to heavy gauge recommended
- Profiles: Round and square tubing
- Tolerances: Suitable for standard fabrication needs
- Bend radius: Medium to large; tight radii not recommended
Our team can advise whether compression bending is right for your pipe specifications and end-use requirements.
How Pipe Wall Thickness Changes
Stress Diagram in Pipe Bending
You need to take several factors into consideration for pipe bending such as bending radius, materials (esp, SUS, high-tensile steel plates, etc.), and more.
| Pipe Bending Methods | How Pipe Wall Thickness Changes |
|---|---|
| Press Bending | Conventional (no bending technique used) |
| Roll Bending | Conventional (no bending technique used) |
| Compression Bending | Press Bending |
| Draw Bending | Stretch Bending |
| Stretch Bending | Stretch Bending |
Compression Bending
What happens to wall thickness in press bending
A pipe is bent while being pressed. This method works well for materials that are hard to expand, as the outside tensile force is small. It’s also suitable for thin-wall or small-radius bending. However, wrinkles may occur due to compression on the inside, making adjustment difficult.
Draw Bending & Stretch Bending
What happens to wall thickness in stretch bending
A pipe is bent while getting stretched. Wrinkles and springback hardly occur as the inside material of the pipe has less buckling. On the other hand, materials that are hard to expand may fracture as the tensile force outside of the material gets bigger.
Advantages of Our Pipe Bending Services
Choosing Pipe Processing TI for your pipe bending needs means working with a trusted team that delivers:
Wide Range of Pipe Diameters
A broad pipe diameter ranges covered (φ10-φ30 for Hydraulic Piping / φ30-φ100 for Exhaust Piping).
Prototyping to Mass Production
Multi-product, small-lot production system. Manufacturing lead times as short as 1 week or JIT.
Quick Manufacturing Lead Time
For mandrels: 2-day manufacturing lead time. Non-contact 3D measuring instruments for thorough inspection.
Wrinkle-Free Results
Accurate bends without kinks or flattening, even on thin walls. Multi-product, small-lot production system for cost reduction.
Trusted Pipe Bending Supplier
Proudly delivering high-quality, custom pipe bending solutions backed by over 60 years of industry experience and trusted expertise.
Tailored Bending Solutions
Custom bends for architectural, structural, and industrial needs. Precision-made to match your exact specs and standards.
We combine technology with craftsmanship to ensure every bend meets the exact specifications your project demands.
PIPE BENDING APPLICATIONS
Automotive
Vehicles
Heavy-duty Machinery
Forklift
Heavy-duty Machinery
Excavators
Heavy-duty Machinery
Dozers
Heavy-duty Machinery
Wheel Loaders
Agricultural Machinery
Seeders
Agricultural Machinery
Harvesters
Agricultural Machinery
Sprayers
Why Choose Pipe Processing TI for Roll Pipe Bending?
Pipe Processing TI is a leading provider of pipe bending and fabrication services with decades of experience serving clients across The United States. We combine technical expertise, high-performance bending equipment, and attention to detail to deliver dependable results.
What sets us apart:
- In-house engineering and fabrication support
- Fast quotes, fast turnaround times
- Industry-compliant quality control
- Competitive pricing for custom and high-volume work
- Proven performance in complex, multi-bend pipe projects
When quality, precision, and reliability matter, PTI is your partner in custom metal pipe bending.
