The definition of the design conditions for each operation is a crucial step in the design of any piping system. These conditions serve as the foundation for the design of that system once they are defined. The design pressure and the design temperature are the two main factors that make up the design conditions for calculating wall thickness. The possibility of more than one design condition being in a single piping system must be understood by designers.

We’re going to discuss in detail all about pipe wall thickness, and why it is a crucial step in the pipe bending journey. By the end of this blog, you’ll get a clear understanding while making a choice for pipe wall thickness.

So let’s get started:

The distance between a pipe's inner and outer diameters is referred to as the pipe wall thickness. It is a crucial factor in the design and construction of piping systems and is commonly measured in millimeters or inches.

The internal pressure of the fluid or gas being conveyed, the external forces acting on the pipe, the type of material used to make the pipe, and the temperature of the fluid or gas are just a few of the variables that affect a pipe's wall thickness. To guarantee that the pipe can safely handle the stresses and pressures that it will be exposed to over its operating life, the wall thickness must be carefully assessed.

The thickness of a pipe's wall can change depending on a number of variables. One of the most important parameters determining the wall thickness is, for instance, the internal pressure of the fluid or gas being conveyed through the pipe. To keep the pipe from exploding, the wall thickness must likewise increase as the pressure rises.

The pipe's construction material's strength is another important factor that affects the wall thickness. Less wall thickness may be needed for pipes made of stronger materials than those constructed of weaker materials.

The diameter of the pipe may also affect the wall thickness needed to withstand internal and external forces acting on the pipe, which is another prevalent factor. The necessary wall thickness may also depend on the characteristics of the liquid or gas being conveyed through the pipe.

For example, very corrosive or hot fluids or gases might hasten the degradation of the material, needing a thicker wall thickness to prevent pipe failure.

A pipe's wall thickness measurement is crucial for quality assurance and safety purposes. The size, composition, and location of the pipe are only a few of the variables that affect the thickness measurement technique. Ultrasonic thickness measurement, magnetic particle inspection, radiographic testing, and optical profiling are some of the most frequently used techniques for determining a pipe's wall thickness.

The thickness of the pipe walls can be measured using sound waves in a non-destructive way called ultrasonic thickness measurement. Ferromagnetic materials can have surface and subsurface discontinuities that can be found through magnetic particle examination. X-rays or gamma rays are used in radiographic examination to look at the pipe's internal structure. Optical profiling measures the distance between the pipe's inner and outer surfaces by scanning the pipe's surface using an optical probe.

It is crucial to make sure the pipe's surface is clear and devoid of any corrosion or debris that can skew the data. To confirm that the pipe is suitable for use, the measured thickness should be contrasted with the necessary thickness for the specific application.

For the safe and effective operation of piping systems, the right pipe wall thickness is essential. In doing so, it assists in ensuring that the pipe can withstand the strains and pressures to which it will be subjected during its operating life, avoiding pipe failures, leaks, and other potential risks.

In addition to adding to the overall safety and dependability of the system, proper pipe wall thickness guarantees that the pipe meets the necessary safety requirements and regulations for the particular industry or application.

The right pipe wall thickness for your application depends on a variety of factors, including internal pressure, external forces, fluid or gas properties, material strength, pipe diameter, and safety regulations.

An experienced engineer must thoroughly analyze these factors in order to determine the pipe's required wall thickness. It is also very important to consider the pipe's production process and the costs of using larger walls. The pipe can efficiently and safely transfer fluids or gases by choosing the right wall thickness.

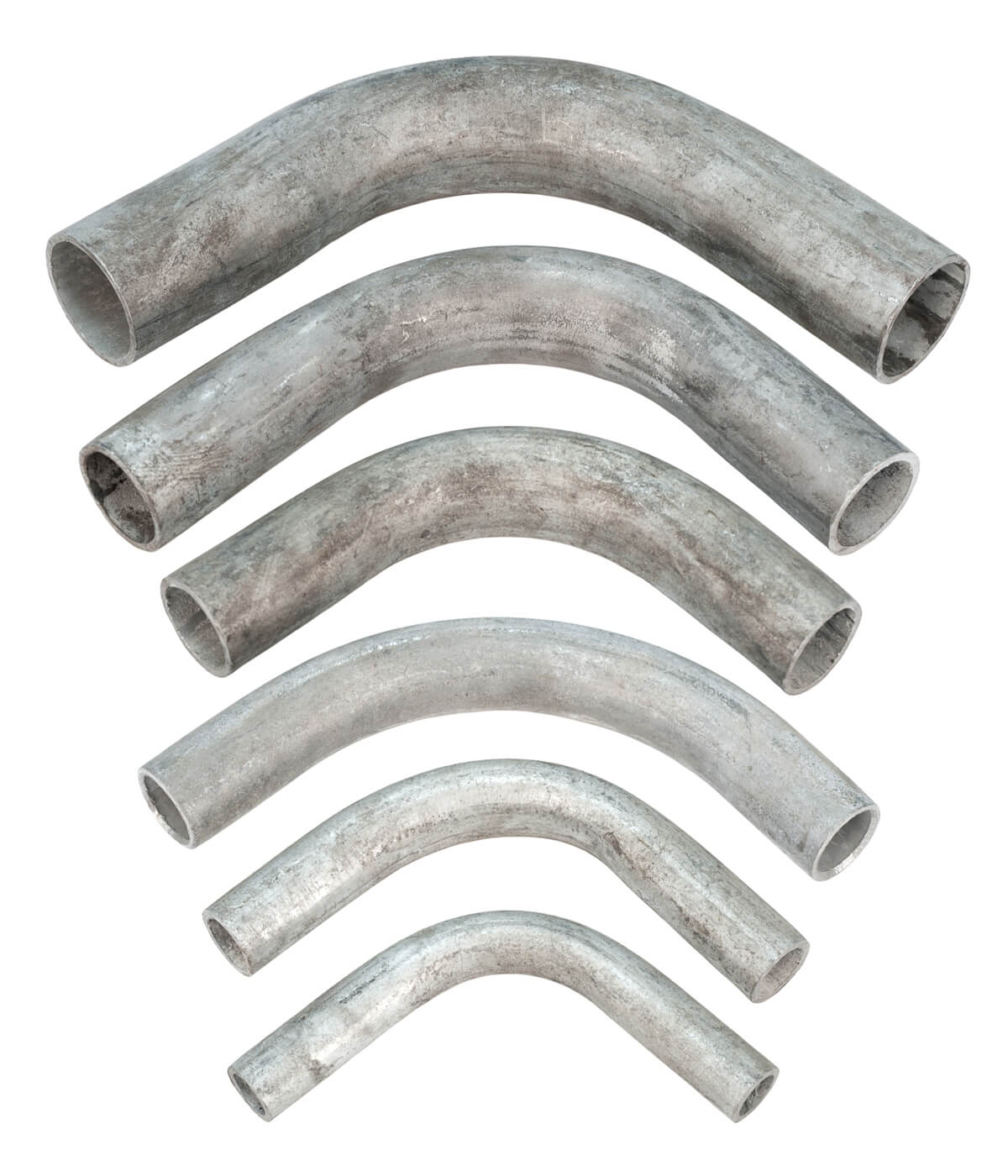

Pipes are frequently bent using the press bending technique for a variety of uses. The procedure involves exerting pressure on the pipe to get it to bend in a specific direction. When choosing pipes for applications that need bending, it's crucial to take press bending's impact on the wall thickness of the pipe into account.

The wall thickness reduction is influenced by the bend radius, the characteristics of the material, and the initial wall thickness of the pipe. In rare circumstances, a pipe's structural integrity may be compromised by a reduction in wall thickness, resulting in an early failure. To provide a safe and dependable system, it is crucial to carefully examine the impact of press bending on the wall thickness and choose the right pipe for the application.

A pipe or tube is stretched around a die during the stretch-bending process of metal fabrication to produce a bend. The bend's interior surface is compressed during the operation, while the outside surface experiences stretching forces. The wall becomes thinner as a result of the stretching effect, which causes the wall thickness to decrease in the stretched area.

In order to prevent a pipe or tube's structural integrity from being compromised, it is crucial to take into account how stretch bending will affect the wall thickness of the pipe or tube. It is advised to utilize materials with better ductility and elasticity and to modify the process parameters to reduce the stretching effect on the pipe or tube in order to ensure the right wall thickness.

Considerations for determining the necessary pipe wall thickness for a particular application include internal and external forces, fluid or gas characteristics, material strength, pipe diameter, and safety restrictions. The calculations and guidelines provided by industry codes and standards like ASME B31.3, B31.4, and B31.8 can be used to determine the minimum needed wall thickness based on these considerations.

To determine the necessary wall thickness for the pipe, an engineer should do a thorough examination of these variables and apply the pertinent industry norms and rules. To make sure that the pipe can safely and effectively convey fluids or gases without failure or damage, quality control testing should be done to confirm the calculated wall thickness.

When choosing the ideal pipe for a job, consulting with professionals like Pipe PTI is essential. The standards, rules, and best practices for choosing and specifying pipes are well-known to experts. They can help in determining the elements, such as the kind of fluid or gas to be transported, the needed temperature and pressure, and the environmental conditions, that have an impact on the pipe's performance in a specific application.

Additionally, by collaborating with professionals like Pipe PTI, you can make sure that the chosen pipe complies with all necessary performance and safety standards for the intended application. This can aid in avoiding potential dangers like pipe failures, leaks, or ruptures, which can result in major harm, accidents, or even fatalities.

By finding chances to use more affordable materials or configurations while still satisfying the required performance standards, engaging with specialists can also assist maximize the cost-effectiveness of the pipe decision. In conclusion, consulting industry professionals like Pipe PTI can assist guarantee that the right pipe is chosen for the job, leading to a safe, dependable, and effective piping system.

When designing and choosing pipes for different applications, pipe wall thickness is a crucial factor to take into account. In order for the pipe to survive the internal pressure and external forces it may encounter during operation, the wall thickness must be sufficient. The material of the pipe, the diameter of the pipe, the operating temperature, and the pressure are a few of the variables that affect how thick the wall should be.

The minimum pipe wall thickness for various uses can be determined using guidelines and standards provided by the American Petroleum Institute (API) and the American Society of Mechanical Engineers (ASME). To guarantee the safety and dependability of the piping system, it is important to adhere to these standards, which are the result of in-depth research and testing.

It is crucial to remember that the cost of the piping system is influenced by the pipe wall thickness. A thicker wall signifies the need for more material and more expensive construction. A thinner wall, however, might not be able to handle the necessary pressure, which could cause the piping system to fail catastrophically. Therefore, it's critical to strike a balance between costs and the system's necessary reliability and safety.
