Low-Wrinkle Bending and Assembly for Automotive Cabin Structures
Cabin Frames – Precision Bending for Deformed Pipes
We manufacture high-precision cabin frames using deformed pipe bending with minimal wrinkling, even on complex shapes. Ideal for automotive and industrial vehicle cabins, our system supports prototyping, trial runs, and small-lot mass production. From pipe bending to final assembly, we handle the entire process in-house to ensure quality and efficiency.
| Material (Solid Round Bar) | STK400 |
| Material Thickness | t3.2~t6.0 |
| Bend Radius | Small Radius: R150~R250 Large Radius: R1000~R6500*¹ |
| Capabilities | Bending, Weld assembly, Laser drilling |
| Manufacturing Lead Time | 2-3 business days for mass production*² / 2 weeks for prototypes for small-lot production*³ |
*¹ Step bending is also available
*² Varies by production amount
*³ Varies by shapes
Tube Bending
Tube Bending

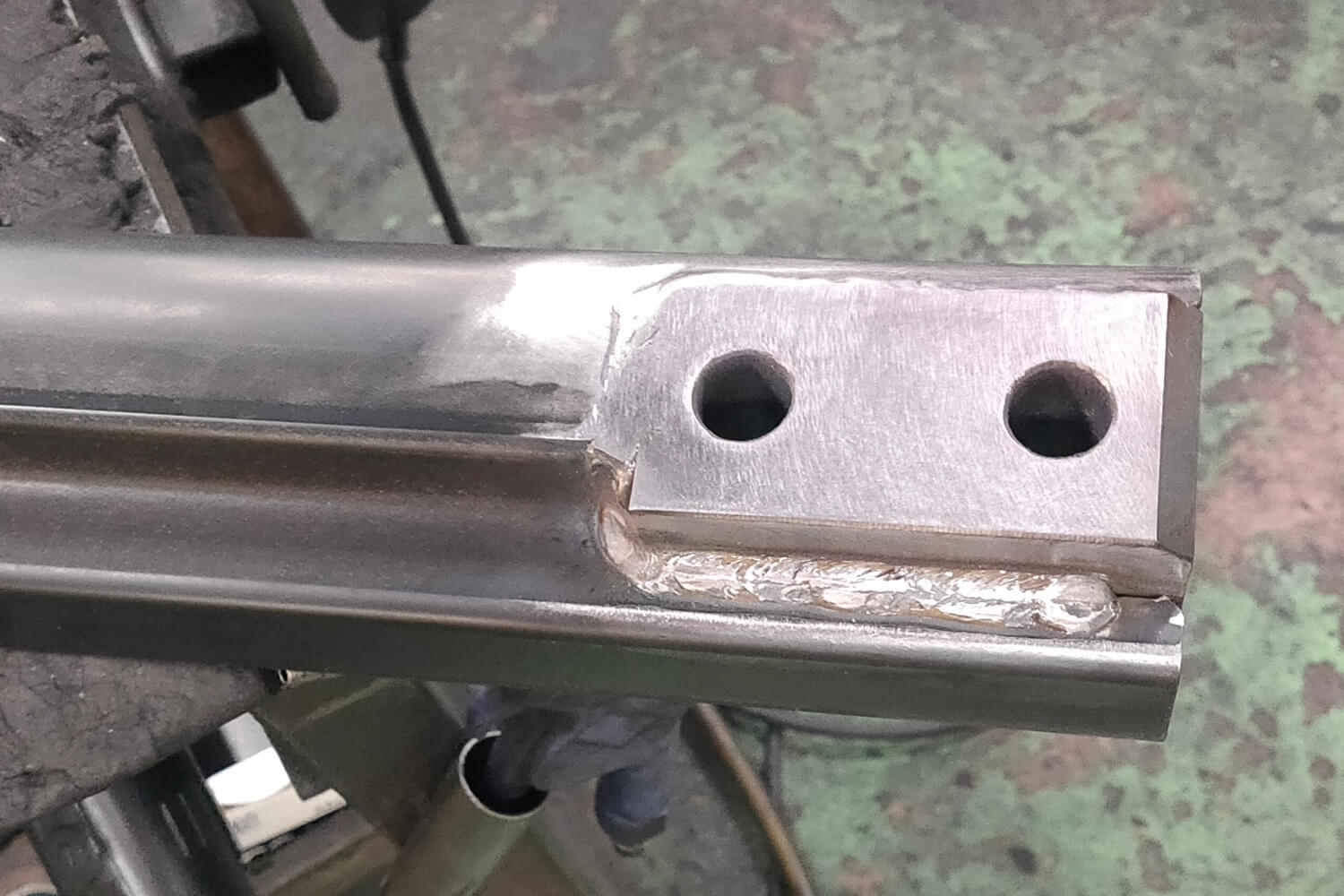

Welding
Laser Machining
Stainless Steel Tube
Stainless Steel Tube

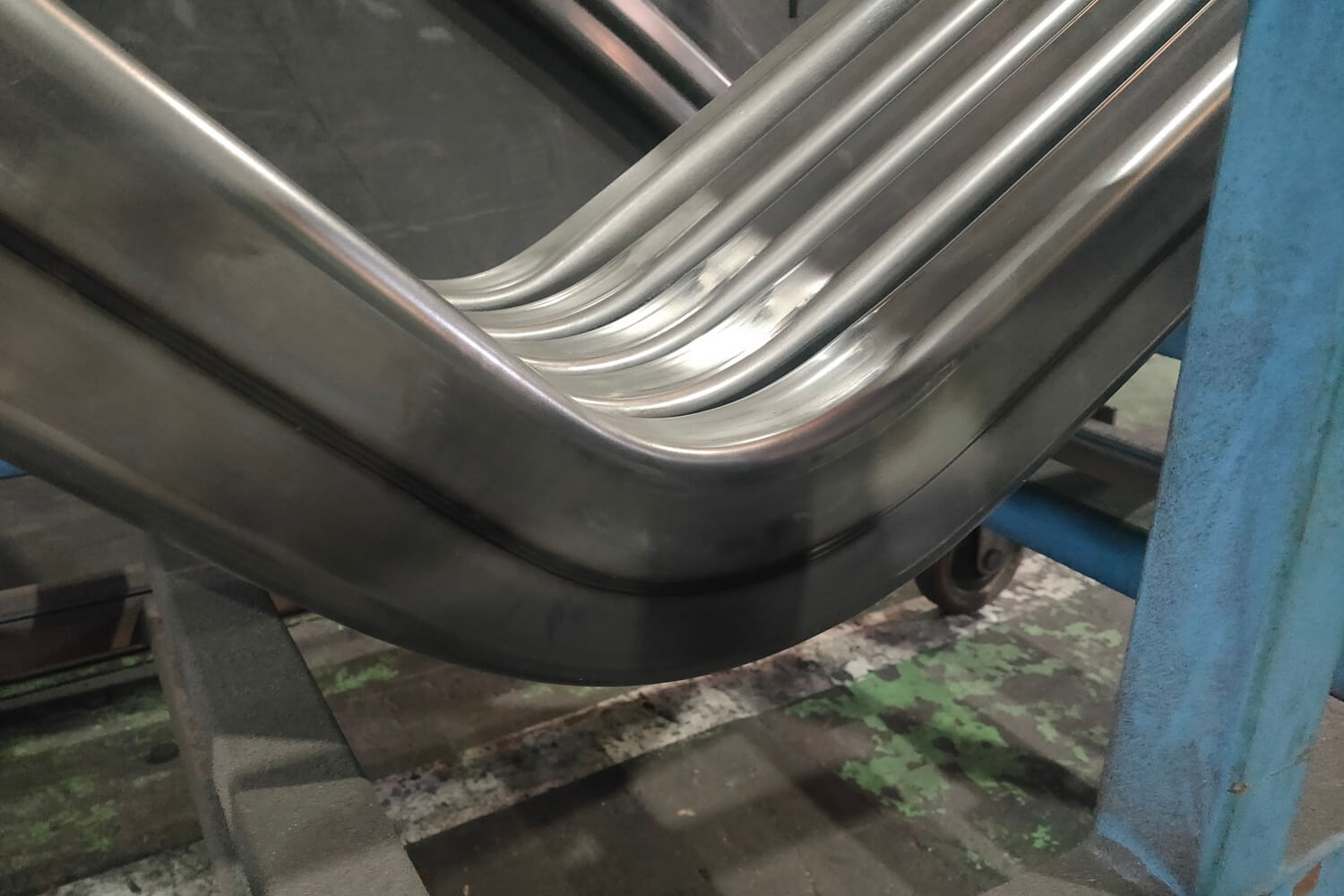

Bending Deformed Pipes for Cabin Frames

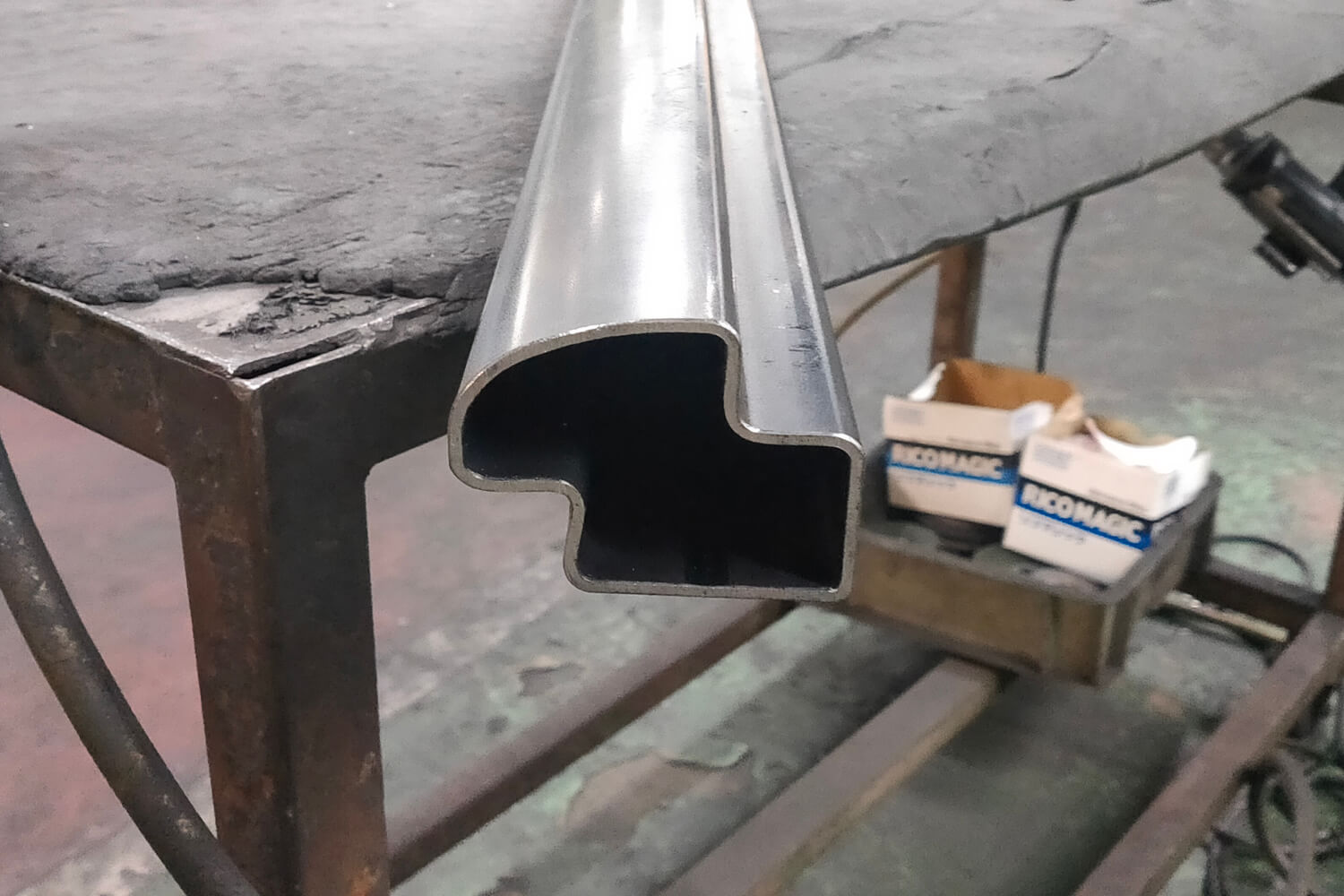

Our advanced forming technology enables high-precision bending of pipes with complex cross-sections—delivering smooth curves with no wrinkles or angle distortion.

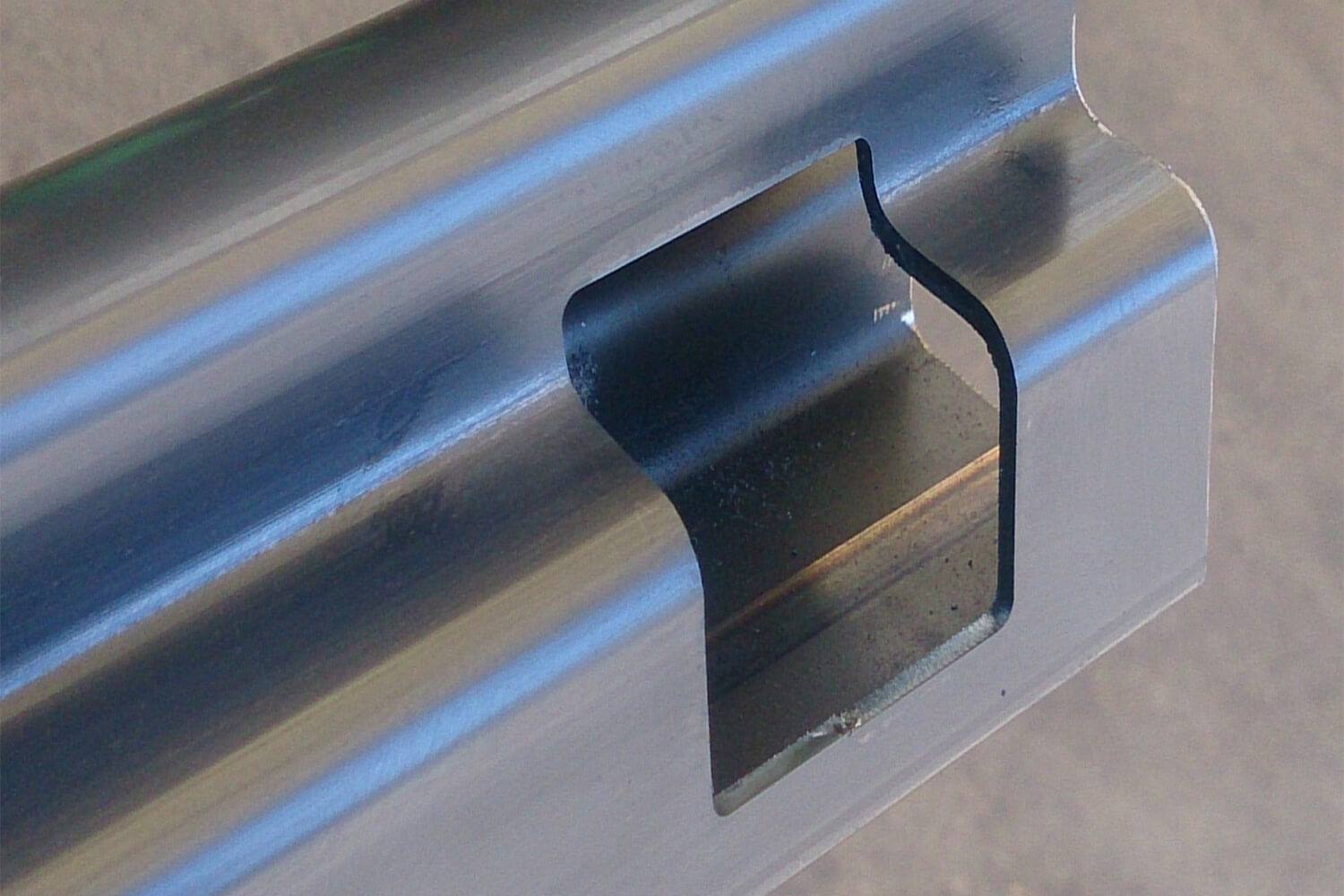

We also integrate laser drilling to cut intricate hole shapes directly into the bent pipes, streamlining production for high-performance cabin frame components.
Reference: Cabin Frame Flyer
This video showcases high-precision pipe processing for a cabin frame, using automated bending machinery to ensure accurate shaping, consistent quality, and structural integrity. Ideal for heavy-duty applications in construction and manufacturing, this process supports efficient fabrication and optimized material usage in complex frame designs.
CABIN FRAME APPLICATIONS
Automotive
Vehicles
Heavy-duty Machinery
Forklift
Heavy-duty Machinery
Excavators
Heavy-duty Machinery
Dozers
Heavy-duty Machinery
Wheel Loaders
Agricultural Machinery
Seeders
Agricultural Machinery
Harvesters
