Precision-Bent Pipes for Industrial Hydraulic Systems
Hydraulic Piping – Custom Fabrication for High-Pressure Applications
We specialize in the fabrication of high-pressure hydraulic piping, supporting diameters from φ10 to φ30 and pressure ratings up to 21 MPa. Our multi-product, small-lot production system enables quick turnaround for prototyping, trial runs, or mass production, with lead times starting at just one week or available for JIT delivery.
Using materials like STPS, STKM, SGP, and stainless steel, we offer high-precision bending, welded assembly, and terminal processing. Our capabilities are ideal for industrial hydraulic systems, including construction equipment, factory automation, and mobile machinery.
| Material (Solid Round Bar) | STPS (Cold-Drawn Carbon Steel Pipes) / STKM / SGP (Carbon Steel Pipes for Piping) / Stainless Steel |
| Hydraulic Pressure | Up to 21 Mpa*¹ |
| Pipe Diameter | φ10~φ30 |
| Pipe Thickness | t1.6~t5.5 |
| Bend Radius | 1.0D~ (Material Diameter)*² |
| Capabilities | Bending / Weld Assembly / Terminal Processing |
| Manufacturing Lead Time | 1 week~ |
*¹ Ask for details
*² Varies by material and bending condition

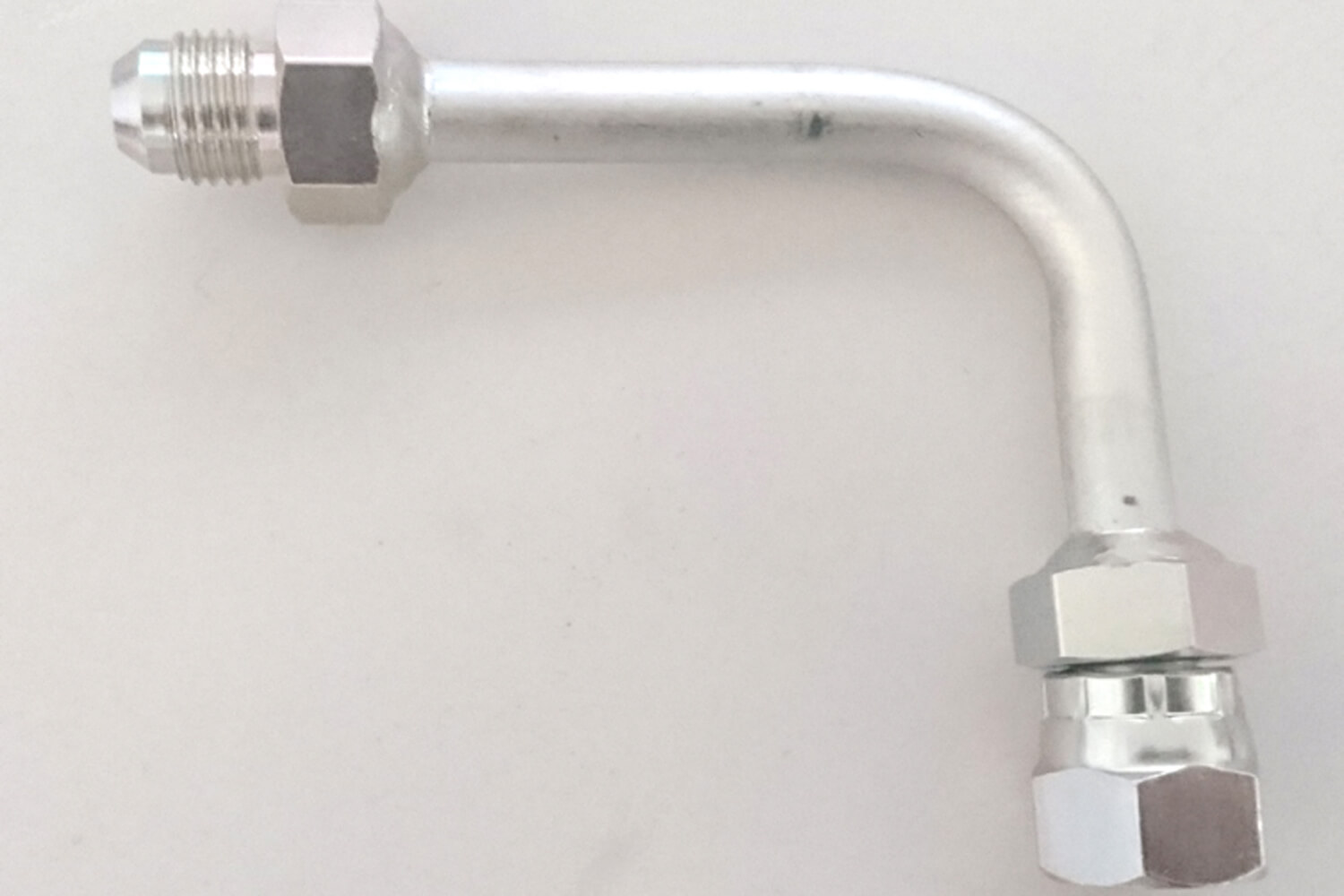

Terminal Processing
Bending
Welding
Hydraulic Piping (Assy)
Hydraulic Piping (Assy)
Hydraulic Piping (Attached to a forklift)
Flexible Hydraulic Pipe Fabrication for Custom High-Pressure Systems
Our proprietary production equipment enables precise shaping of hydraulic pipes to meet diverse design and performance requirements. From cutting and bending to welded assembly and terminal processing, we manage the entire process in-house. Designed for multi-type, small-volume production, our system is ideal for custom builds, rapid prototyping, and flexible manufacturing of high-pressure hydraulic components.
Reference: Pipe Fabrication Flyer
This video captures the precision bending of hydraulic pipes used in high-pressure industrial systems. With exact angles and clean finishes, the process ensures leak-free connections and efficient fluid flow—critical for construction equipment, factory automation, and other heavy-duty hydraulic applications.
HYDRAULIC PIPING APPLICATIONS
Automotive
Vehicles
Heavy-duty Machinery
Forklift
Heavy-duty Machinery
Excavators
Heavy-duty Machinery
Dozers
Heavy-duty Machinery
Wheel Loaders
Agricultural Machinery
Seeders
Agricultural Machinery
Harvesters
